NTG Series Fixed Lifting Feeding Machine for Hygienic Pharmaceutical Material Transfer

In modern pharmaceutical manufacturing, material transfer is no longer a secondary handling task. It is a critical part of process control, product protection, operator safety, cleaning efficiency, and regulatory compliance. Powders, granules, pellets, and other solid materials must move between mixers, granulators, dryers, tablet presses, coating machines, and capsule filling machines without unnecessary exposure to the surrounding environment. Every open transfer step can increase the risk of dust release, material loss, cross-contamination, foreign-matter ingress, and operator contact.

The NTG Series Fixed Lifting Feeding Machine is designed to address these challenges through a controlled lifting, positioning, docking, and discharge process. It is intended for the transfer and feeding of solid materials in pharmaceutical solid dosage manufacturing and can be integrated with a range of upstream and downstream processing equipment. By lifting a conical bin or associated material container to the required height, rotating it into position, and connecting it with the inlet of the following machine, the system supports enclosed material handling between processing stages.

The machine is manufactured by Changzhou Zhiyang Machinery Equipment Co., Ltd., a China-based equipment company specializing in powder processing, oral solid dosage production, process integration, and customized engineering solutions. Established in 2010, the company provides standalone machines, modular systems, and complete production lines for pharmaceutical, biopharmaceutical, biotechnology, nutraceutical, veterinary, additives, chemical, food, and related industries.

This article examines the operating principle, construction, technical benefits, manufacturing approach, installation considerations, cleaning characteristics, application value, and selection criteria of the NTG Series Fixed Lifting Feeding Machine. It also explains why a fixed lifting structure can provide practical advantages over less integrated material-handling arrangements and how an equipment supplier with process-integration capabilities can contribute more value than a machine-only vendor.

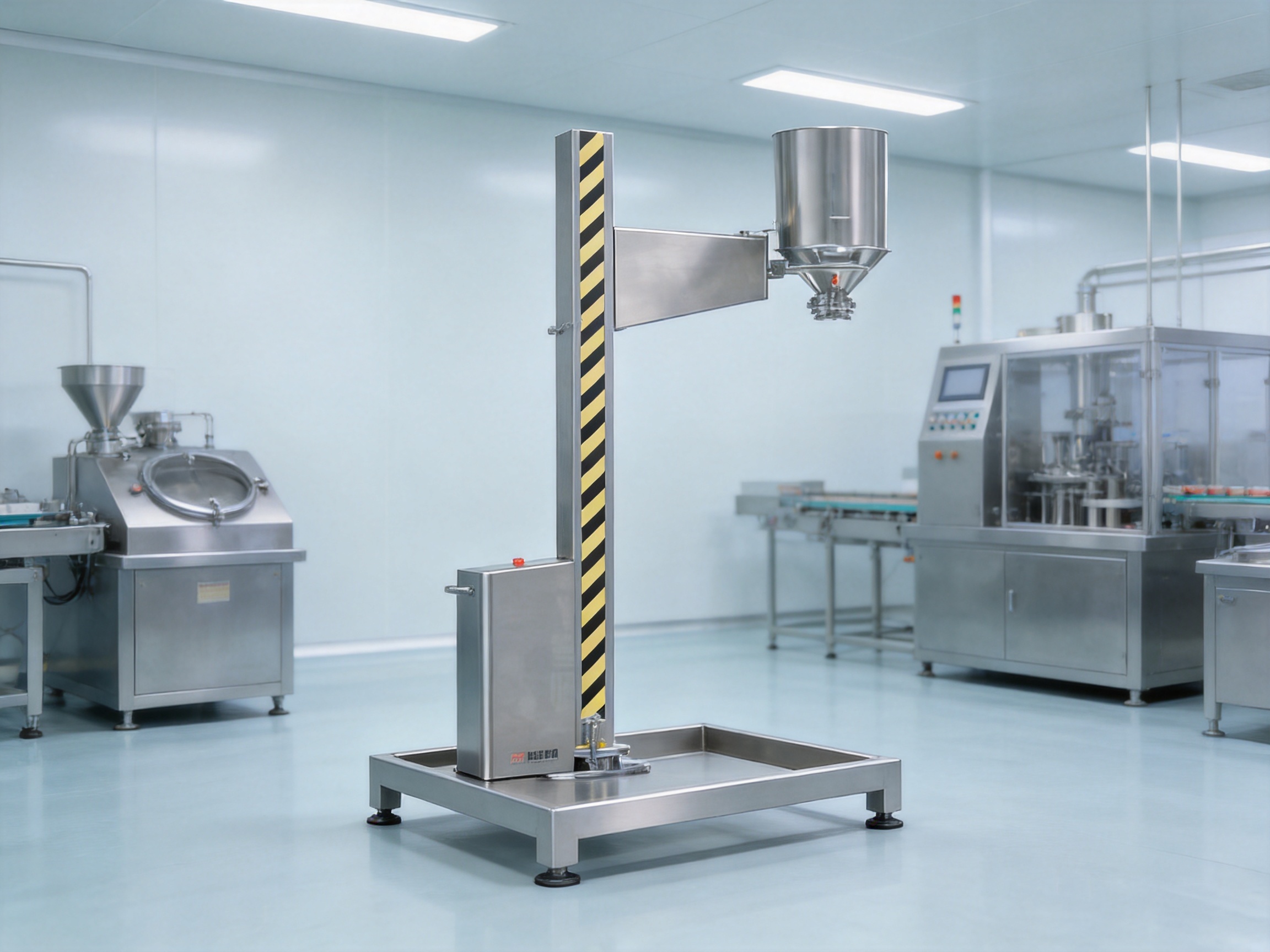

NTG Series Fixed Lifting Feeding Machine

1. The Role of Lifting and Feeding Equipment in Solid Dosage Manufacturing

Solid dosage manufacturing commonly involves a sequence of operations such as dispensing, mixing, wet or dry granulation, drying, sizing, lubrication, compression, coating, and capsule filling. Although each process has its own equipment and operating conditions, the overall production line must function as one coordinated system. Material must move from one machine to another at the correct time, in the correct quantity, and with minimal exposure.

In many traditional production arrangements, material is transferred manually using open containers, mobile bins, bags, or intermediate vessels. These methods can be flexible, but they may require additional labor and create more opportunities for dust generation. Manual lifting and positioning can also introduce ergonomic risks, particularly when containers are heavy or must be raised to elevated process inlets.

A dedicated lifting feeding machine provides a more systematic solution. Instead of relying on repeated manual handling, the equipment raises the material container mechanically and positions it at the required process height. The container can then be aligned with the receiving inlet, creating a more controlled route for discharge. When correctly configured, this arrangement reduces the number of open handling steps and helps maintain a cleaner production environment.

The NTG Series is particularly relevant where a conical bin or similar container must be raised, tilted, rotated, and docked with another machine. Its fixed structure gives the installation a stable reference point. This is important when the same transfer station must repeatedly serve equipment at a known location and elevation.

Because pharmaceutical production often involves products with different formulations, batch sizes, and powder characteristics, the transfer system must also be adaptable. A lifting machine may be required to support various process heights, different container capacities, and multiple equipment combinations. The ability to lift associated processing equipment together with the conical bin helps the NTG Series accommodate different process layouts and improve compatibility with downstream machines.

2. Product Overview

The NTG Series Fixed Lifting Feeding Machine is a stationary lifting and conveying unit for solid materials. Its principal function is to raise a conical bin or connected material container to a predetermined height, rotate the container into alignment with a receiving machine, and open the discharge valve so that the material can enter the next process under enclosed conditions.

The equipment is suitable for integration with mixers, granulators, tablet presses, coating machines, capsule filling machines, and other solid-processing equipment. It can be used as part of a complete production line or installed as a dedicated transfer point between selected process units.

The machine is categorized within lifting and conveying equipment, while its practical applications extend across several stages of pharmaceutical production. It can support the movement of blended powders, wet or dry granules, intermediate products, and other solid formulations, provided that the material properties and container configuration are compatible with the selected model.

In addition to pharmaceutical manufacturing, the equipment can be applied in chemical and food-processing operations where hygienic material transfer, controlled discharge, and reduced operator exposure are important. The final configuration should be selected according to material density, flowability, moisture, particle size, batch weight, process height, cleaning requirements, and the design of the connected equipment.

2.1 Main structural components

The machine is composed of a base frame, a vertical column, and a lifting mechanism. These three structural elements form the foundation of the fixed lifting arrangement.

The base frame supports the machine and transfers operating loads to the installation surface. A correctly designed and installed base contributes to stability during lifting, rotation, docking, and discharge. It also helps maintain repeatable positioning over the service life of the equipment.

The vertical column provides the principal guide and support structure for the lifting movement. It defines the vertical travel path and supports the mechanism that raises the connected container. The column also participates in the rotational positioning function, allowing the material container to be aligned with the inlet of the downstream machine.

The lifting mechanism provides the controlled movement required to raise the container to the designated height. The drive arrangement is designed to achieve stable operation rather than abrupt movement. Controlled lifting is important for reducing mechanical shock, protecting the container connection, and supporting safe operator interaction.

The conical bin is securely connected to the material container before operation. Depending on the production arrangement, the bin may hold material from an upstream process or form part of a transfer assembly designed for repeated movement between processing stages.

The discharge butterfly valve controls the release of the material. It remains closed during lifting, rotation, and positioning. After the container has been docked with the receiving equipment, the valve can be opened to allow the material to pass into the next process. The valve includes a misoperation prevention design and is constructed for convenient removal, supporting both operational safety and cleaning access.

3. Working Principle and Operating Sequence

The NTG Series follows a clear sequence that combines container connection, lifting, tilting, rotation, docking, and discharge. Each stage contributes to controlled material handling.

3.1 Container connection

At the beginning of the operation, the conical bin is securely connected to the material container. The connection must be correctly seated and locked before the lifting cycle begins. Proper connection is essential because the container and its contents will be raised and subsequently rotated.

Operators should confirm that the container is suitable for the machine, that the connection surfaces are clean, and that no foreign objects interfere with the coupling. The inspection should also verify that the discharge valve is in the closed position before lifting starts.

3.2 Vertical lifting

After activation, the lifting system raises the container to the designated height. The vertical travel is determined by the process layout and the inlet elevation of the downstream equipment. The lifting motion should be completed before the container begins its positioning rotation.

The lifting action eliminates the need for operators to manually elevate a heavy container. It also makes it possible to connect equipment installed above floor level, such as the inlet of a tablet press, coating machine, or capsule filling machine.

3.3 Tilting and rotation

Once the appropriate elevation has been reached, the tilting mechanism rotates the container by 180 degrees. This movement places the discharge side in the orientation required for feeding. The column can then be rotated so that the container is aligned with the feeding inlet of the downstream equipment.

The combination of vertical lifting, 180-degree tilting, and column rotation allows the machine to negotiate differences in equipment position and orientation. This is more functional than a simple vertical hoist that only moves a container upward and downward without providing a controlled docking orientation.

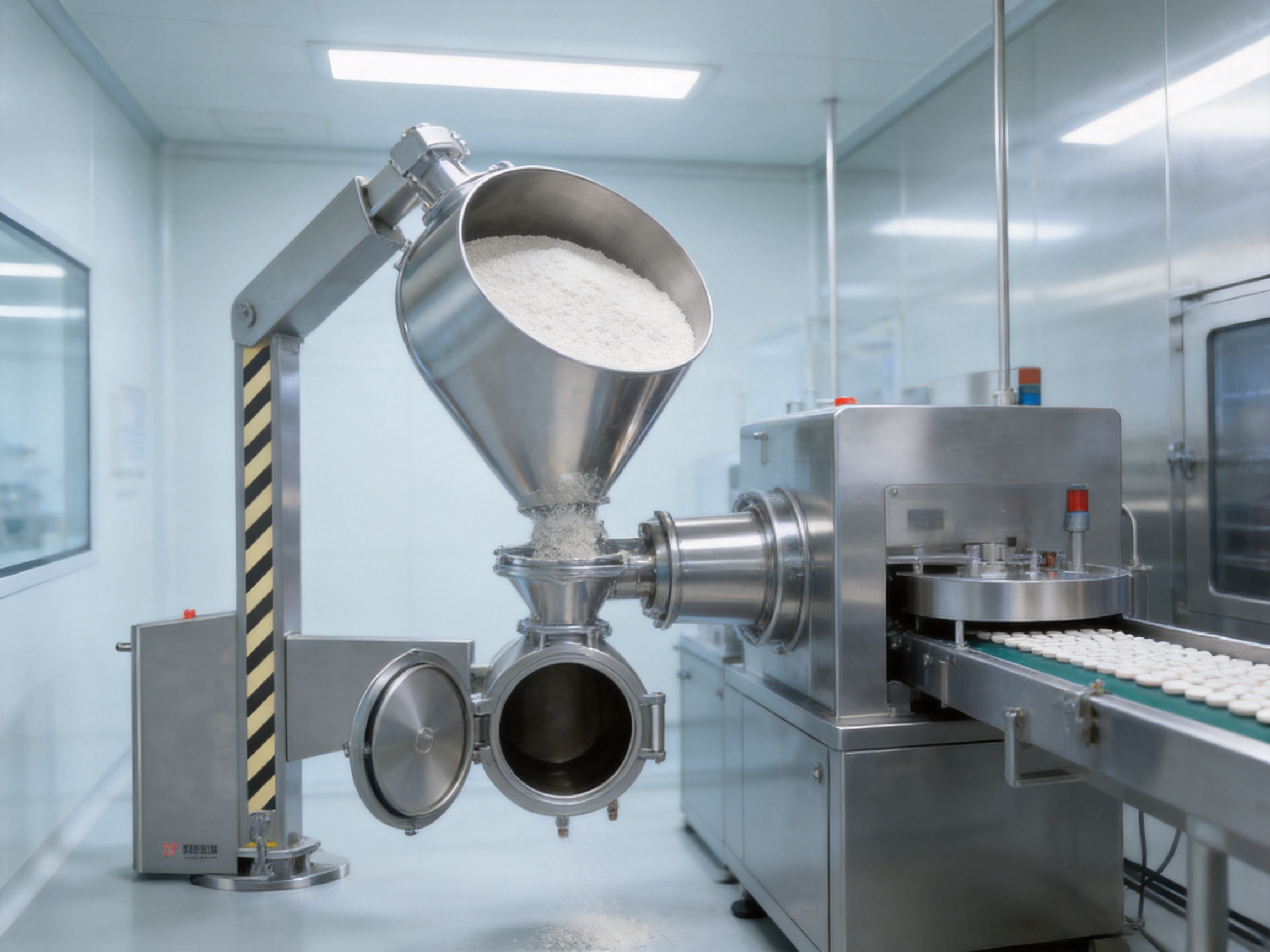

3.4 Enclosed docking

After the container has been aligned, it is sealed with the feeding inlet of the next machine. This docking stage creates a controlled connection between the source container and the receiving process. The quality of the seal is important for reducing dust emission and limiting contact between the material and the surrounding production area.

Sealed docking is especially valuable when handling fine powders or easily dispersed granules. It can also support product segregation strategies when multiple formulations are manufactured in the same facility. Although the transfer arrangement does not replace a complete contamination-control program, it is an important engineering measure within that program.

3.5 Controlled discharge

Once docking has been completed, the discharge butterfly valve is opened. Material then flows from the container into the next process under enclosed conditions. The discharge rate depends on the material characteristics, container geometry, valve opening, receiving equipment, and process requirements.

At the end of discharge, the valve is closed before the container is disconnected or returned to its original position. A defined operating sequence helps prevent premature opening, unintended release, and material spillage.

4. Hygienic Design and Cleaning Advantages

Pharmaceutical equipment must be designed with cleaning in mind from the beginning. Residual powder can accumulate in corners, around exposed fasteners, beneath irregular surfaces, or within inaccessible gaps. If cleaning is difficult, changeover times may increase and the risk of cross-contamination may become more difficult to control.

The NTG Series adopts a compact and stable structure with smooth surfaces, no dead corners, and no exposed fasteners in the primary machine design. These characteristics are intended to simplify cleaning and reduce locations where material can accumulate.

4.1 Smooth external surfaces

Smooth surfaces are easier to wipe, wash, inspect, and maintain than irregular or heavily exposed structures. They also reduce the likelihood that powder will remain attached after routine cleaning. In pharmaceutical environments, visual inspection of smooth surfaces can be more straightforward because residue is less likely to be hidden by complex external geometry.

4.2 Reduced dead spaces

Dead corners and enclosed recesses can be difficult to access. The NTG Series is designed to minimize such areas, supporting more effective cleaning around the base frame, vertical column, lifting mechanism, and transfer connection. The exact cleaning procedure depends on the installed configuration, the materials handled, and the facility’s validated cleaning program.

4.3 Removable butterfly valve

The discharge butterfly valve can be easily disassembled. This is an important advantage because the valve is directly exposed to the product stream and may require frequent inspection or cleaning. A removable valve allows personnel to access product-contact surfaces more effectively than a permanently enclosed arrangement.

The valve’s misoperation prevention design also contributes to safe operation. It helps reduce the possibility that the discharge valve will be opened at the wrong time, such as before the container has been docked or while the container is being moved.

4.4 Support for changeover procedures

Pharmaceutical facilities often produce multiple products or strengths on the same equipment. A transfer system that is easier to clean can help support shorter and more consistent changeover procedures. It may also reduce the amount of manual dismantling required between batches.

Cleaning convenience should not be interpreted as a substitute for documented validation. Operators must still follow approved procedures for disassembly, cleaning agents, rinse conditions, drying, inspection, and residue testing. The equipment’s hygienic design provides a stronger foundation for those procedures.

5. Advantages Compared with Less Integrated Transfer Arrangements

The NTG Series offers several practical advantages when compared with manual lifting, basic hoists, open transfer methods, or non-integrated conveying arrangements. These advantages relate to process control, safety, cleanliness, repeatability, and installation flexibility.

5.1 More controlled material handling

Manual transfer depends heavily on operator technique. The operator must move, lift, position, and empty the container while attempting to control dust and avoid spillage. A fixed lifting feeding machine introduces a defined mechanical sequence, reducing variation between batches and operators.

Repeatable lifting and docking can be especially valuable when the receiving equipment has a fixed inlet position. Once the installation is correctly adjusted, the container can be moved to the same general location during each cycle.

5.2 Reduced operator exposure

When containers are lifted manually, personnel may be exposed to dust, awkward postures, or heavy loads. The NTG Series performs the primary lifting task mechanically. This can reduce the physical burden on operators and improve the overall ergonomics of the material-handling operation.

Reduced operator exposure is also relevant when handling materials that are dusty, irritating, potent, or otherwise undesirable to contact. The machine does not eliminate the need for personal protective equipment or facility containment controls, but enclosed docking and controlled discharge can reduce unnecessary exposure opportunities.

5.3 Better dust control

Open dumping can create dust clouds and deposit powder on nearby surfaces. The NTG Series is intended to connect the container with the downstream inlet before discharge, helping keep material within a defined transfer path. This supports cleaner working conditions and can reduce product loss.

Dust control performance depends on the complete installation, including seals, receiving equipment, room pressure, extraction systems, material properties, and operating procedures. Nevertheless, enclosed docking is a meaningful improvement over open manual transfer.

5.4 Flexible process-height matching

A fixed lifting structure can be engineered around the elevation and orientation of the associated production equipment. The ability to lift associated processing equipment together with the conical bin helps the system match different process heights.

This flexibility is useful when a facility includes equipment from different manufacturers or when the production line has limited floor space. It allows the transfer arrangement to be adapted to the actual process route rather than forcing every machine to share an identical inlet height.

5.5 Improved integration potential

The NTG Series is not limited to one type of receiving machine. It can be integrated with mixers, granulators, tablet presses, coating machines, capsule filling machines, and other solid-processing units. This makes it suitable for both individual transfer points and larger process-integration projects.

A machine that is designed with integration in mind can provide greater value than a standalone lifting device. The practical objective is not simply to raise a container, but to connect processing stages in a way that supports production continuity and hygienic handling.

5.6 Compact and stable construction

The compact structure helps conserve floor space, while the stable fixed arrangement provides a consistent working position. Compared with temporary or improvised lifting solutions, a dedicated structure can offer better long-term repeatability and easier management of operator access zones.

Compact design is particularly beneficial in facilities where equipment density is high. However, sufficient clearance must still be provided for inspection, cleaning, valve removal, container connection, maintenance, and emergency access.

6. Technical Parameters

The available product information lists three model positions: NTG-100, NTG-150, and NTD-200. The third designation appears as NTD-200 in the supplied parameter table, although the product is identified as the NTG Series. This model designation should be confirmed with the supplier during technical clarification and quotation to ensure that the final documentation matches the selected equipment.

Item	Unit	NTG-100	NTG-150	NTD-200
Total power	kW	1.87	1.87	1.87
Installation size for reference: L	mm	1850	1920	1920
L1	mm	1100	1100	1100
W	mm	550	550	550
H1	mm	2200	2200	2200
H2	mm	3050	3150	3310
H3	mm	2800	2800	2800

The dimensions are reference installation values and should not be treated as a substitute for a project-specific general arrangement drawing. Actual requirements may vary according to the conical bin, receiving-machine inlet, discharge connection, guarding, maintenance access, room height, and customer-selected options.

The listed total power is 1.87 kW for each model position in the supplied table. This common power value may simplify electrical planning, but the final electrical specification should be confirmed according to the selected drive system, control cabinet, voltage, frequency, safety devices, and site standards.

6.1 Interpreting the dimensions

The length dimension L is listed as 1850 mm for NTG-100 and 1920 mm for both NTG-150 and NTD-200. L1 is listed as 1100 mm for all models, while W is listed as 550 mm. These values provide an initial reference for determining whether the machine can fit within the available production area.

H1 is listed as 2200 mm for all three model positions. H2 increases from 3050 mm to 3150 mm and then to 3310 mm, indicating that the maximum required height may vary with model size or lifting arrangement. H3 is listed as 2800 mm for all models.

Before ordering, customers should compare the maximum equipment height with the actual ceiling height, overhead utilities, air-handling equipment, lighting, sprinklers, cable trays, and maintenance access requirements. A machine may fit geometrically while still being unsuitable if there is insufficient clearance for cleaning or service work.

7. Manufacturing Strengths and Engineering Capability

The performance of a lifting feeding machine depends not only on the design concept but also on manufacturing discipline. A machine used in pharmaceutical production must be fabricated, assembled, inspected, and tested with attention to dimensional accuracy, surface quality, structural stability, and repeatable operation.

Changzhou Zhiyang Machinery Equipment Co., Ltd. focuses on the design and manufacture of powder-processing and oral solid dosage equipment. Its product scope covers laboratory equipment, mixing equipment, granulation equipment, drying equipment, coating equipment, auxiliary processing equipment, and transfer and conveying systems. This broad portfolio supports a more integrated understanding of the complete production process.

7.1 Process-oriented design

The company describes its approach as process-driven. Instead of selecting a machine solely from a catalog, it develops solutions according to material characteristics, capacity requirements, and site conditions. This approach is important because lifting and feeding performance is affected by the equipment connected on both sides of the transfer point.

For example, a powder with poor flowability may require different discharge considerations from a free-flowing granule. A sticky or moisture-sensitive material may require more detailed cleaning and containment planning. A high-throughput tablet production line may require different docking and transfer timing from a small pilot-scale operation.

Process-oriented engineering allows the supplier to consider the material route, container size, receiving inlet, cleaning method, operator access, and production capacity as one system. This can reduce the risk of purchasing equipment that is technically functional but poorly matched to the wider plant.

7.2 Product portfolio synergy

A supplier that manufactures mixers, granulators, dryers, coating equipment, and transfer systems can better understand the interfaces between these machines. This experience is valuable when designing a transfer point because the inlet and outlet geometry, process elevation, batch sequence, and cleaning requirements must be coordinated.

The NTG Series can therefore be used as part of a broader equipment arrangement rather than treated as an isolated lifting device. It can support material movement after mixing, after granulation, before compression, before coating, or at other stages where a container must be positioned above or beside a receiving machine.

7.3 Manufacturing and quality-system development

The company has expanded its product portfolio, strengthened its research and development capabilities, obtained quality system certification, developed patented technologies, and built overseas service capabilities. These developments indicate an ongoing effort to formalize manufacturing and engineering processes as the business serves more markets and applications.

For pharmaceutical customers, quality-system development is relevant because equipment purchasing involves more than mechanical performance. Customers may require manufacturing records, inspection documents, material certificates, factory testing, drawings, manuals, spare-parts lists, and documentation supporting qualification activities.

7.4 Customization capability

Different pharmaceutical facilities rarely have identical layouts. Room dimensions, ceiling heights, process sequences, container standards, electrical requirements, cleaning systems, and control philosophies can vary considerably. A supplier with customization and engineering experience can adapt the lifting feeding machine to the practical conditions of the project.

Possible areas for technical clarification may include the lifting stroke, docking height, container dimensions, valve type, connection standard, control interface, safety interlocks, surface finish, guarding, material of construction, and cleaning method. All modifications should be confirmed in approved technical documents before fabrication.

8. Application in Pharmaceutical Production Lines

8.1 Integration with mixers

After blending, powder or granulated material may need to be transferred to a subsequent granulation, drying, or lubrication stage. The NTG Series can lift and position a container so that the material is transferred without repeated manual dumping.

When integrated with a mixer, the transfer route should be evaluated for batch capacity, discharge geometry, material flowability, and residual hold-up. The container connection must be compatible with the mixer outlet and the lifting machine’s receiving arrangement.

8.2 Integration with granulators

Granulation operations often produce intermediate material that must be dried, sized, or transferred to another container. A lifting feeding machine can help connect the granulator discharge route with the next process while reducing open handling.

For wet granules, special attention may be required because moisture can affect flowability and adhesion. The transfer sequence should be tested with representative material to confirm that the container discharges effectively and that cleaning requirements are manageable.

8.3 Integration with tablet presses

In tablet production, the press may be positioned at a height that requires a controlled elevated feed. The NTG Series can raise the conical bin and dock it with the tablet press inlet. This arrangement can support a continuous or semi-continuous material feed from an intermediate container.

The installation must account for the tablet press inlet height, feed rate, powder segregation risk, and the need for access during press adjustment and cleaning. The transfer connection should not obstruct routine operation or make it difficult to inspect the receiving inlet.

8.4 Integration with coating machines

Coating machines often receive tablet cores from an upstream process and may require a controlled supply of coating materials or solid products. The lifting feeding machine can be used to position a container at the required feeding location, depending on the specific coating-system design.

Because coating operations may involve strict product segregation and cleaning requirements, the sealed docking function can provide a useful engineering control. As with every application, the complete arrangement should be evaluated according to the material route and the coating machine interface.

8.5 Integration with capsule filling machines

Capsule filling machines can require a stable and hygienic supply of powder or granules. The NTG Series can support elevated feeding arrangements where the material container must be positioned above the capsule filler inlet.

Particular attention should be given to the powder’s flow characteristics, the required feed consistency, and the prevention of material bridging or segregation. The feeding system should be validated under representative operating conditions before routine production.

9. Installation and Commissioning Considerations

Successful operation begins with correct installation. Before the machine arrives, the customer should confirm the foundation or floor capacity, available height, access route, electrical supply, ventilation conditions, process connections, and clearance for operation and maintenance.

9.1 Site survey

A site survey should identify the exact locations of the upstream and downstream machines. The survey should record inlet and outlet elevations, centerlines, access doors, columns, walls, overhead utilities, and operator working zones. These details help determine whether the standard reference dimensions are suitable.

9.2 Mechanical alignment

The base frame must be installed on a stable and properly prepared surface. The vertical column should be aligned according to the manufacturer’s installation instructions. Mechanical alignment affects lifting stability, rotational positioning, docking accuracy, and long-term wear.

The container connection and downstream inlet must be checked for alignment throughout the complete operating cycle. The container should not contact surrounding structures during lifting, tilting, or rotation.

9.3 Electrical and control integration

The electrical supply must match the final equipment specification and local standards. Control integration may include start and stop functions, lifting limits, valve status, docking confirmation, emergency stop circuits, and interface signals with the connected processing equipment.

Safety interlocks should prevent hazardous sequences, such as lifting with an unsecured container, rotating outside an approved position, or opening the discharge valve before docking is confirmed. The exact interlock design should be agreed during the technical specification stage.

9.4 Factory and site testing

Factory acceptance testing can verify basic mechanical movement, lifting operation, rotation, valve function, safety devices, and control logic before shipment. Site acceptance testing then confirms that the machine operates correctly with the customer’s actual container and receiving equipment.

Where possible, testing should include a representative material or a suitable process simulation. Product-flow behavior cannot always be predicted from an empty-machine test, especially when the material is cohesive, electrostatic, moist, or sensitive to segregation.

10. Operation, Maintenance, and Safety

Operators should receive training before using the machine in production. Training should cover container connection, pre-use inspection, lifting, rotation, docking, valve operation, emergency procedures, cleaning, and reporting of abnormal conditions.

The machine should never be operated with an improperly secured container. Personnel should remain clear of moving components and should not attempt to reach into the discharge area while the mechanism is energized. Lockout and isolation procedures should be applied before maintenance, valve removal, or work beneath a raised container.

Routine inspection should include the base frame, column, lifting mechanism, connection points, valve, seals, safety devices, fasteners, and control components. Abnormal noise, vibration, leakage, slow movement, incomplete docking, or inconsistent positioning should be investigated before continued production.

The discharge butterfly valve deserves particular attention because it controls the product path. It should be checked for smooth movement, correct closure, seal condition, and absence of powder accumulation. Its removable design supports more thorough inspection and cleaning.

Lubrication and preventive maintenance should follow the manufacturer’s instructions. Maintenance intervals may depend on operating frequency, load, environment, cleaning method, and production schedule. A documented maintenance program helps protect equipment reliability and supports audit readiness.

11. Cleaning and Cross-Contamination Control

Cleaning procedures should be developed around the actual product and facility. The equipment’s smooth surfaces, reduced dead corners, and removable valve can make cleaning more convenient, but the customer remains responsible for establishing and validating suitable procedures.

A typical cleaning strategy may include safe shutdown, isolation, removal of the discharge valve where applicable, dry removal of loose powder, washing or wiping of accessible surfaces, rinsing, drying, inspection, and reassembly. The procedure must be compatible with the material of construction and the approved cleaning agents.

When multiple products are handled, cleaning verification should consider the most difficult-to-clean formulation and the most difficult-to-detect residue. Swab locations and rinse sampling points should be selected according to the equipment geometry and the facility’s validation strategy.

Cross-contamination control also depends on production scheduling, room classification, pressure cascades, air extraction, personnel movement, container identification, and material segregation. The NTG Series supports this broader control strategy by reducing open transfer and enabling a more enclosed connection between processing stages.

12. Selection Guidance for Buyers

Buyers should evaluate the machine according to the full application rather than selecting a model only by nominal capacity or dimensions. The following questions are useful during the technical inquiry stage.

12.1 What material will be handled?

Provide information about bulk density, particle-size distribution, moisture content, flowability, abrasiveness, electrostatic behavior, dustiness, and sensitivity to shear. These characteristics influence container size, discharge behavior, cleaning method, and transfer reliability.

12.2 What is the batch weight?

The customer should specify the maximum gross weight, including the material container, conical bin, product, and any connected components. The lifting mechanism must be selected and operated within its approved load range.

12.3 What is the required process height?

Measure the receiving inlet and determine the required docking elevation. Include any variation caused by equipment adjustment, interchangeable machines, or different product formats. The final lifting stroke and height should be confirmed through a layout drawing.

12.4 What cleaning method is required?

Clarify whether the equipment will be dry-cleaned, wet-cleaned, dismantled for cleaning, or connected to a more extensive washing procedure. The selected valve, seals, materials, surface finish, and access arrangement should support the approved cleaning method.

12.5 What level of automation is needed?

Some installations may require basic local controls, while others may need integration with a plant control system. Discuss operating modes, safety interlocks, alarm signals, equipment status, emergency stops, and batch-record requirements at the beginning of the project.

12.6 What documentation is required?

Pharmaceutical customers may require general arrangement drawings, electrical drawings, operating manuals, maintenance instructions, material certificates, inspection records, factory test documents, spare-parts lists, and qualification support. These expectations should be included in the commercial and technical agreement.

13. Why Choose a Process-Integration Manufacturer?

Purchasing a lifting feeding machine from a process-integration manufacturer can reduce the communication gap between individual equipment packages. A supplier that understands mixing, granulation, drying, coating, compression, and conveying can evaluate the transfer point in relation to the complete production route.

Changzhou Zhiyang Machinery Equipment Co., Ltd. provides standalone machines, modular systems, and complete production lines. Its experience across laboratory, pilot, and full-scale production allows it to address projects at different development stages. This is useful for customers who want to begin with a single transfer machine and later expand toward a more integrated line.

The company’s stated engineering approach emphasizes practical process routes, implementation plans, consistency, efficiency, reliability, and cost control. These priorities are particularly relevant when the customer is seeking more than a standard catalog product.

Its international service capabilities and overseas customer partnerships also provide a foundation for supporting projects outside the domestic market. For international buyers, service responsiveness, technical communication, spare-parts planning, and documentation quality are important factors alongside the machine’s mechanical design.

14. Economic and Operational Value

The value of the NTG Series should be assessed over the equipment life cycle rather than by purchase price alone. A reliable transfer arrangement can reduce manual handling, improve production consistency, lower material losses, simplify cleaning access, and support safer working conditions.

Reduced dust emission can help lower housekeeping requirements and protect the surrounding equipment. Repeatable docking can reduce setup variation. Mechanical lifting can reduce operator fatigue. A compact fixed structure can make better use of available floor space. A removable valve can simplify inspection and cleaning work.

These benefits may contribute to lower operating costs, although the actual result depends on batch frequency, labor rates, product value, cleaning schedules, facility design, and production volume. Buyers should consider the expected payback in the context of the complete material-handling process.

15. Limitations and Proper Use

The NTG Series is designed for solid material transfer and feeding, but no single machine is suitable for every product or process. Materials with extreme cohesion, high moisture, unusual density, strong electrostatic behavior, or very poor flowability may require additional design measures or a different discharge arrangement.

The machine should also be operated within its specified load, height, speed, and environmental limits. It should not be modified without supplier approval, particularly in areas involving lifting capacity, structural components, safety interlocks, or valve operation.

Sealed docking helps reduce exposure, but it does not automatically guarantee complete containment or regulatory compliance. The final result depends on the entire system, including seals, extraction, room pressure, cleaning, operating procedures, and qualification. Customers should evaluate the machine as one component of a complete GMP-oriented manufacturing strategy.

16. Frequently Asked Questions

Q1: What is the primary function of the NTG Series Fixed Lifting Feeding Machine?

The machine lifts a conical bin or material container, tilts and rotates it, aligns it with the inlet of downstream equipment, and enables enclosed discharge into the next process. It is intended for solid material transfer in pharmaceutical and related industries.

Q2: Which types of equipment can be connected to it?

It can be integrated with mixers, granulators, tablet presses, coating machines, capsule filling machines, and other processing equipment that has a compatible feeding inlet and installation arrangement.

Q3: How does the machine help reduce dust?

The container is positioned and sealed with the receiving inlet before the discharge butterfly valve is opened. This creates a more enclosed material path than open manual dumping and can help reduce dust emission and material loss.

Q4: Does the machine support GMP-oriented production?

Its compact structure, smooth surfaces, reduced dead corners, lack of exposed fasteners in the primary design, removable butterfly valve, and enclosed docking arrangement support hygienic handling and GMP-oriented facility practices. GMP compliance depends on the complete equipment, facility, procedures, documentation, and validation program.

Q5: Is the machine fixed or mobile?

The NTG Series is a fixed lifting machine. Its stationary base and vertical column provide a stable reference position for repeated lifting, rotation, docking, and discharge operations.

Q6: Can the equipment match different process heights?

The machine is designed to raise the container to a designated height, and associated processing equipment can be lifted together with the conical bin to accommodate different process elevations. The required height must be confirmed during layout and technical design.

Q7: Is the discharge valve easy to clean?

The discharge butterfly valve is designed for convenient disassembly. This allows better access for inspection and cleaning of product-contact areas, subject to the customer’s approved cleaning procedure.

Q8: What are the listed model dimensions?

The reference table lists L dimensions of 1850 mm for NTG-100 and 1920 mm for NTG-150 and NTD-200. The listed width is 550 mm, L1 is 1100 mm, H1 is 2200 mm, and H3 is 2800 mm. H2 is listed as 3050 mm, 3150 mm, and 3310 mm respectively. Final dimensions must be confirmed by project drawings.

Q9: Why does the table identify one model as NTD-200?

The supplied technical information identifies the product as the NTG Series but lists the third table model as NTD-200. This may be a model-labeling inconsistency or a related model designation. Buyers should confirm the correct model name in the final quotation, drawing, manual, and nameplate.

Q10: What information should be supplied when requesting a quotation?

Provide material characteristics, batch weight, container dimensions, required lifting height, receiving-machine details, floor and ceiling dimensions, cleaning method, electrical standards, automation requirements, surface-finish expectations, and documentation needs.

Q11: Can the machine be used outside the pharmaceutical industry?

Yes. The equipment is also applicable to chemical and food industries where hygienic transfer of solid materials is required. The materials of construction, cleaning method, and regulatory requirements should be reviewed for each application.

Q12: Does the manufacturer provide complete production lines?

The manufacturer provides standalone machines, modular systems, and complete production lines for laboratory, pilot, and full-scale production. Its product scope includes mixing, granulation, drying, coating, auxiliary processing, and transfer equipment.

17. Conclusion

The NTG Series Fixed Lifting Feeding Machine provides a practical solution for transferring solid materials between pharmaceutical processing stages. Its operating sequence combines secure container connection, controlled vertical lifting, 180-degree tilting, column rotation, sealed docking, and butterfly-valve discharge.

The machine’s principal advantages include a compact and stable fixed structure, reduced manual lifting, improved process repeatability, better compatibility with different equipment heights, reduced open material handling, and cleaning-oriented construction. Smooth surfaces, minimized dead corners, no exposed fasteners in the primary structure, and a removable discharge valve support hygienic operation and maintenance.

Compared with manual transfer or less integrated lifting arrangements, the equipment can improve operator ergonomics, reduce dust release, support cross-contamination control, and provide a more consistent connection between processing stages. Its value is greatest when it is engineered as part of a complete material-handling route rather than installed as an isolated mechanical unit.

Changzhou Zhiyang Machinery Equipment Co., Ltd. strengthens the product offering through process-oriented design, experience across powder-processing and oral solid dosage equipment, customization capability, modular engineering, quality-system development, research and development, and overseas service support. These strengths allow the NTG Series to be considered not only as a lifting machine, but also as part of a broader pharmaceutical production solution.

For final selection, customers should confirm model nomenclature, lifting capacity, container compatibility, docking height, dimensions, electrical specifications, cleaning requirements, safety interlocks, documentation, and site conditions. With suitable engineering, installation, validation, and maintenance, the NTG Series can contribute to cleaner, safer, and more reliable solid material transfer in pharmaceutical, chemical, food, and related manufacturing environments.

References

1. Product technical information for the NTG Series Fixed Lifting Feeding Machine, including operating principle, structure, features, and reference dimensions.

2. General principles of pharmaceutical good manufacturing practice and hygienic equipment design.

3. Guidance on equipment cleaning, cross-contamination prevention, and cleaning validation in solid dosage manufacturing.

4. Engineering principles for powder handling, granule transfer, dust control, and enclosed material conveyance.

5. Technical information concerning the product portfolio, engineering capabilities, manufacturing development, and process-integration services of Changzhou Zhiyang Machinery Equipment Co., Ltd.

6. Standard practices for pharmaceutical equipment installation, commissioning, operation, preventive maintenance, and qualification.

Product: NTG Series Fixed Lifting Feeding Machine
