Fixed Lifting and Tilting Transfer Machines for Hygienic Solid Material Handling

Modern pharmaceutical solid dosage production depends on the reliable movement of powders, granules, pellets, and milled products between successive processing stages. Although transfer may appear to be a secondary operation, it has a direct influence on product quality, operator safety, production efficiency, cleaning performance, and regulatory compliance. Material must often be moved from a fluid bed granulator to a fluid bed dryer, from a dryer to a milling unit, or from a processing vessel to the next stage without unnecessary exposure to the surrounding environment.

The fixed lifting and tilting transfer machine is designed to address this requirement. It combines vertical lifting, controlled tilting, horizontal positioning, and enclosed discharge in one integrated system. The equipment is especially suitable for pharmaceutical solid dosage applications, but it can also serve chemical, food, nutraceutical, veterinary, and other industries that require hygienic and controlled transfer of solid materials.

In this article, the operating principle, structural design, process benefits, manufacturing strengths, technical parameters, application value, cleaning considerations, and selection factors associated with this type of transfer machine are examined in detail. The discussion also explains how a process-focused equipment manufacturer can provide advantages beyond the supply of an individual machine by integrating transfer equipment with granulation, drying, milling, and other production systems.

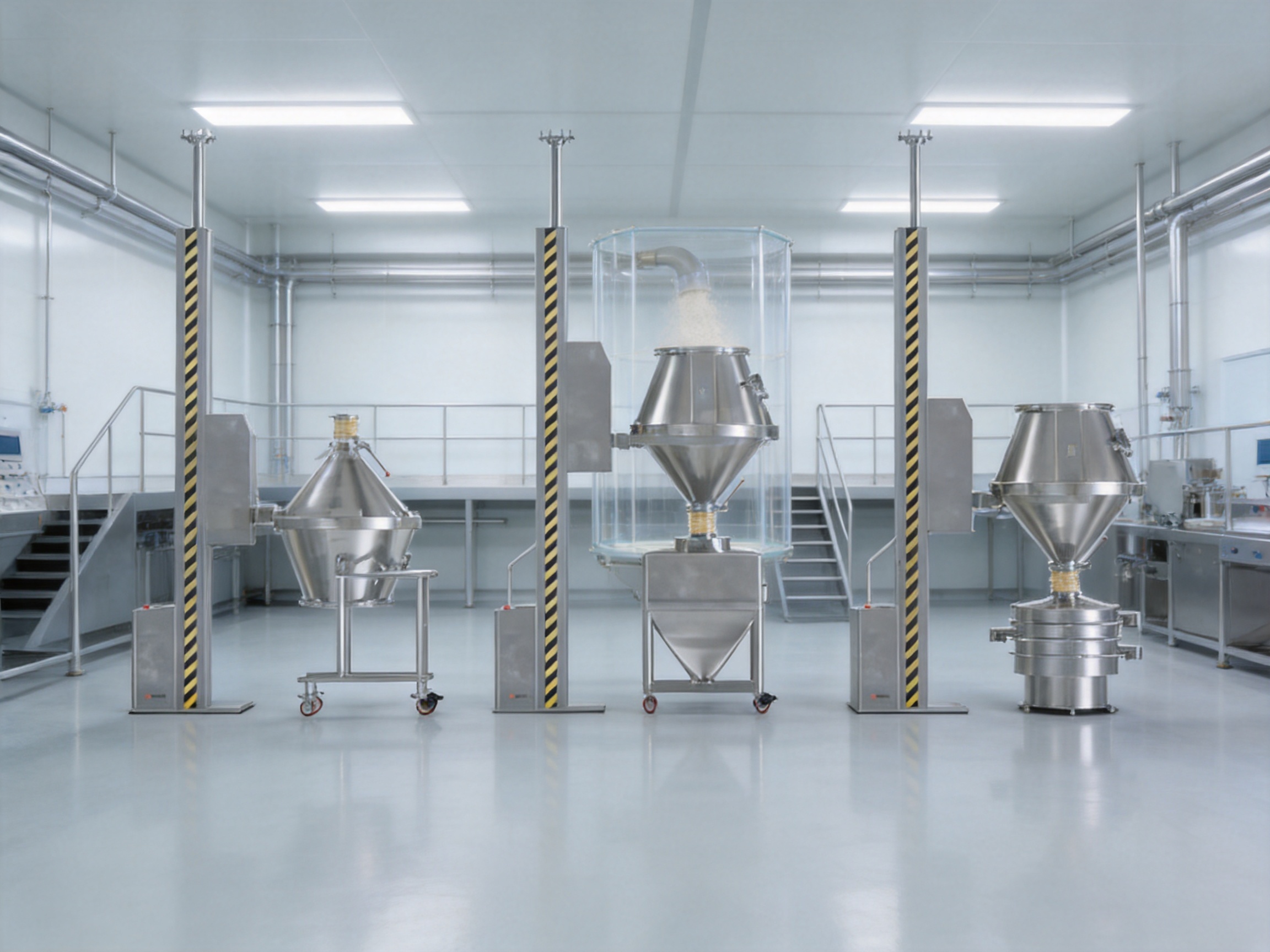

NTF Fixed Lifting and Tilting Transfer Machine

1. The Role of Transfer Equipment in Solid Dosage Manufacturing

In a solid dosage production line, materials rarely remain in one vessel from the beginning of the process to the end. A typical process may include dispensing, mixing, wet or dry granulation, drying, milling, lubrication, compression, coating, and packaging. Each stage may use different equipment, different elevations, and different connection interfaces. The transfer step between two operations must therefore be carefully designed.

Uncontrolled transfer can create several problems. Powder may escape into the production area, creating dust and increasing the possibility of cross-contamination. Granules may be damaged by excessive impact or unsuitable conveying speeds. Operators may need to manually lift or tip heavy containers, increasing ergonomic and safety risks. Product may also remain in low points, corners, or poorly designed discharge areas, reducing yield and complicating cleaning validation.

A fixed lifting and tilting machine provides a controlled mechanical solution. It lifts a conical bin or similar process container to the correct elevation, rotates it toward the receiving equipment, and enables material discharge through a butterfly valve. The operation can be completed with limited manual intervention while preserving an enclosed transfer route.

The equipment is particularly useful where the same type of bin must be moved between multiple process positions. Instead of relying on forklifts, mobile platforms, or manual handling, the fixed machine provides a dedicated and repeatable movement path. This improves process consistency and makes the production area easier to organize.

1.1 Supporting a Closed Material Route

Pharmaceutical powders and granules should be protected from unnecessary contact with the external environment. At the same time, the surrounding area must be protected from product dust. A sealed or semi-enclosed docking arrangement helps achieve both objectives.

The transfer machine allows the conical bin to be positioned at the inlet of a fluid bed granulator, fluid bed dryer, milling unit, or other downstream machine. Once the bin and receiving equipment are properly aligned, the discharge valve can be opened to move the material through the intended route. This arrangement reduces open handling and helps support the hygiene requirements of modern production facilities.

1.2 Improving Process Coordination

Processing equipment is often installed at different heights because of building structure, equipment dimensions, air-handling arrangements, or process-flow requirements. A transfer machine with lifting and tilting functions can compensate for these differences. The bin does not need to be manually repositioned every time the receiving equipment has a different inlet height.

The fixed structure also helps establish a stable reference point for process layout. When the lifting stroke, rotation range, discharge height, and docking positions are defined during engineering, the machine can be incorporated into a broader production line with greater predictability.

2. Product Overview and Intended Applications

The NTF fixed lifting and tilting transfer machine is engineered for the transfer and feeding of solid materials in pharmaceutical production. Its principal application is the controlled movement of material contained in a conical bin. The machine can be used together with fluid bed granulators, fluid bed dryers, and milling equipment, creating a practical connection between upstream and downstream operations.

The equipment is also applicable to other sectors where cleanable and enclosed material handling is required. Potential applications include chemical powders, food ingredients, nutraceutical products, veterinary formulations, additives, and selected biotechnology or biopharmaceutical materials. The exact design should be adapted to the properties of the product, the required batch size, cleaning method, and site conditions.

Because the machine is fixed in position, it is suited to production areas where the process route is established and repeatable. It is not intended to replace every type of mobile bin lifter or pneumatic conveying system. Instead, its strength lies in providing a dedicated lifting, tilting, and discharge solution for a defined manufacturing process.

2.1 Main Equipment Functions

The machine performs several connected functions:

First, it receives and supports the conical bin through a dedicated lifting structure. The support system is designed to hold the bin securely as it moves vertically.

Second, it raises the bin to the required transfer elevation. The lifting action allows the container to be matched with the inlet height of the receiving process machine.

Third, it tilts the bin by up to 180 degrees. This rotation prepares the container for discharge and allows the product to flow toward the outlet under controlled conditions.

Fourth, the vertical column can be rotated horizontally after the brake is released. This enables alignment with a downstream unit or another designated process position.

Fifth, the bin can be lowered to the required operating height, after which the butterfly valve is opened to transfer the material into the next processing stage.

These functions are integrated into one machine rather than being distributed among several independent handling devices. This reduces the number of separate movements that operators must coordinate.

3. Operating Principle

The machine consists primarily of a base frame, a vertical column, a lifting mechanism, a tilting system, and the necessary control and safety components. The base frame provides structural support and stability. The vertical column carries the lifting assembly and allows horizontal rotation when the transfer position must be changed. The lifting mechanism adjusts the vertical height, while the tilting system rotates the bin for discharge.

3.1 Bin Docking

At the beginning of the transfer cycle, the conical bin is connected or docked with the inlet of a fluid bed granulator, fluid bed dryer, milling unit, or another receiving machine. Correct docking is essential because it establishes the enclosed interface between the material container and the downstream equipment.

Docking arrangements may vary according to the bin design and the receiving machine. In all cases, the connection should be mechanically stable and suitable for the intended cleaning and containment strategy. Proper alignment reduces the risk of leakage, mechanical stress, and product accumulation around the connection point.

3.2 Vertical Lifting

After the bin has been secured, the lifting system raises it to the designated position. The vertical movement allows the machine to accommodate differences in equipment elevation. The lifting operation should be carried out in a controlled manner to minimize sudden movement and prevent unnecessary stress on the bin, valve, docking interface, and supporting structure.

The lifting function is also valuable when a granulating or milling unit must be raised synchronously with the conical bin. Synchronized movement can help maintain a sealed connection while matching the height required by the process layout. This is especially useful in facilities where several machines must operate within a restricted vertical space.

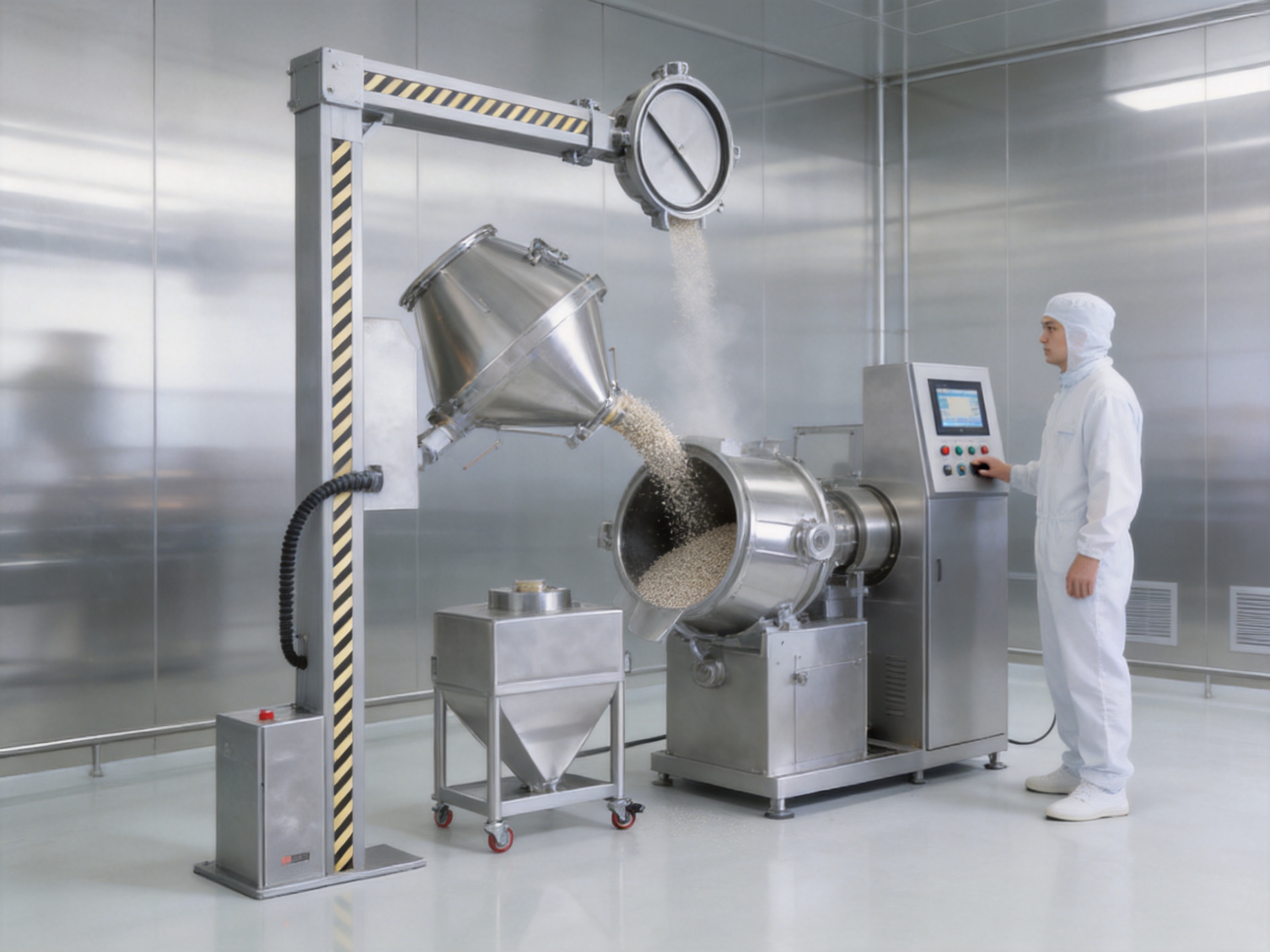

3.3 Tilting and Rotation

Once the bin reaches the required height, the tilting mechanism rotates it by up to 180 degrees. This movement positions the bin for gravity-assisted discharge. The product path is therefore created by changing the orientation of the container rather than by requiring an additional transfer pump or open manual tipping operation.

After the brake is released, the column can rotate horizontally to align the bin with the downstream process. The combination of vertical movement, bin tilting, and horizontal column rotation gives the machine flexibility within a defined working envelope. It can be positioned according to the arrangement of connected equipment while remaining anchored to the production floor.

3.4 Controlled Discharge

When the bin has reached the correct working position, it is lowered as necessary. The butterfly valve is then opened to allow material to enter the next processing stage. The valve controls the discharge opening and provides a practical shut-off mechanism when the transfer is complete.

The valve includes a misoperation prevention design intended to reduce the likelihood of incorrect operation. It can also be dismantled for cleaning. These features are important in pharmaceutical environments, where cleaning access, operational discipline, and prevention of unintended discharge are all significant considerations.

4. Structural Design and Hygienic Engineering

Equipment used for pharmaceutical powder and granule handling must be evaluated not only by its movement capability but also by its cleanability and product-contact design. Residual material can become a source of contamination, reduce batch recovery, or complicate changeover. The NTF machine is designed with attention to these requirements.

4.1 Fixed Lifting Structure

The fixed lifting structure provides a stable foundation for repeated lifting and lowering cycles. Unlike improvised handling methods, the machine establishes a defined movement path and a consistent support arrangement for the bin.

A fixed structure can also make it easier to position the equipment in relation to building columns, process utilities, floor drains, air-handling zones, and operator access paths. During project design, the installation dimensions and working envelope can be considered together with the dimensions of the connected granulator, dryer, or mill.

Structural rigidity is particularly important when the bin is loaded. The machine must safely handle the combined effects of container weight, material weight, lifting movement, tilting, and horizontal positioning. Correct capacity selection and installation engineering remain essential, especially for larger bins and high-density materials.

4.2 Smooth Contact Surfaces

The contact surfaces are designed without unnecessary dead corners or exposed fasteners. This type of construction supports easier cleaning and reduces locations where powder can accumulate. Smooth and accessible surfaces also make visual inspection more straightforward.

In a pharmaceutical production environment, cleanability should be considered from the beginning of equipment selection rather than treated as a maintenance issue after installation. The machine should be evaluated for accessibility, dismantling requirements, drainage, inspection, and compatibility with the site’s validated cleaning procedure.

The elimination of exposed fasteners in product-contact or high-risk areas can reduce the possibility of trapped residue. It may also simplify wipe-down and inspection activities. The exact surface finish, materials, and sealing arrangements should be confirmed according to the product and regulatory requirements of the application.

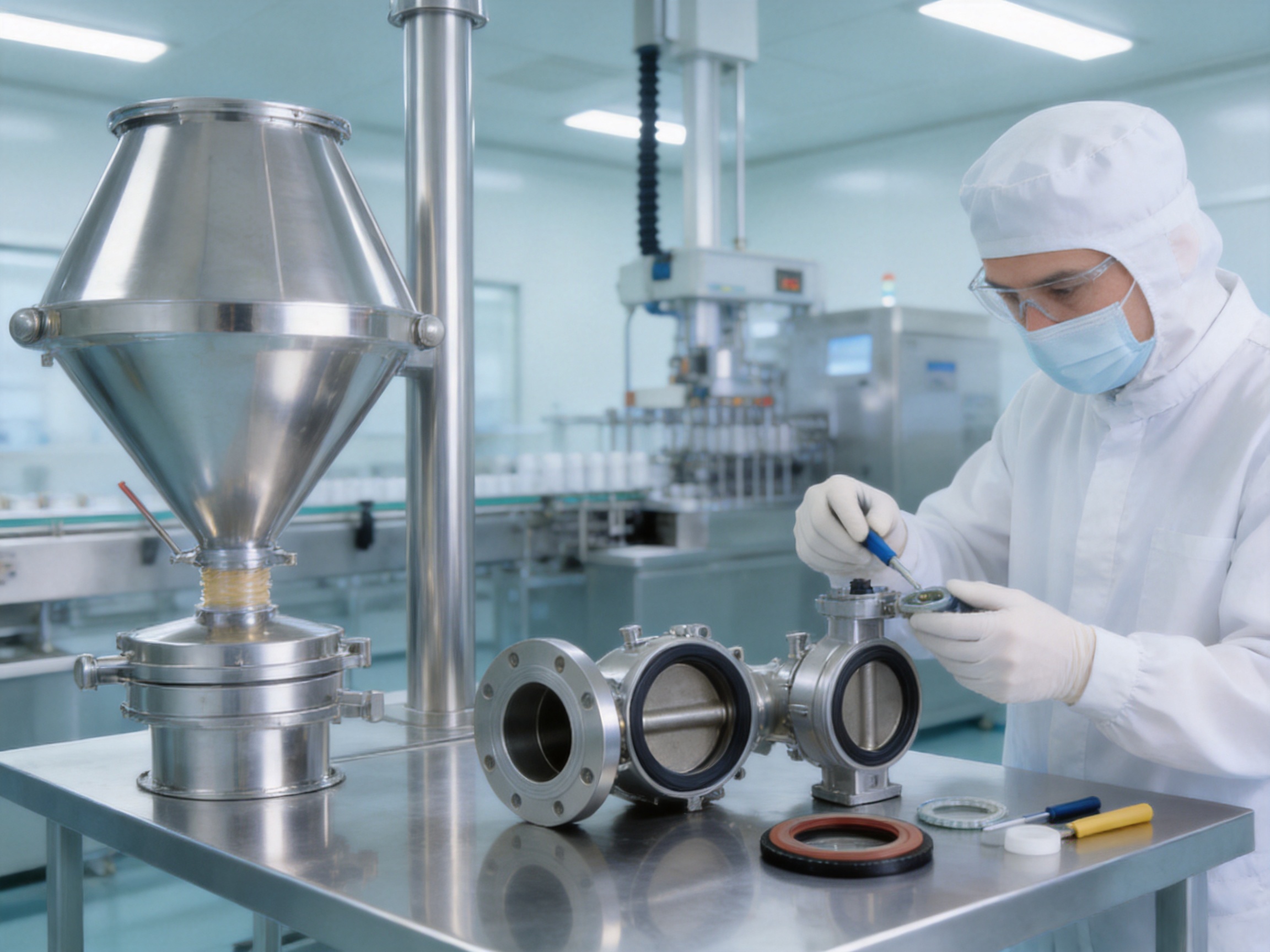

4.3 Dismantlable Butterfly Valve

The discharge butterfly valve is a key component because it directly controls the product outlet. The ability to dismantle the valve makes it possible to clean and inspect the component separately. This is advantageous when the production line handles multiple products or when the material has a tendency to adhere to valve surfaces.

The valve’s misoperation prevention design adds an operational safeguard. It helps ensure that the discharge action follows the intended sequence and reduces the risk of accidental opening during lifting, positioning, or docking. Operators should still follow documented procedures and use the machine’s control and safety functions correctly.

5. Advantages Compared with Less Integrated Transfer Methods

The benefits of a fixed lifting and tilting transfer machine become clearer when it is compared with common alternatives. Manual tipping, forklift handling, simple fixed platforms, and some open transfer arrangements may be suitable for limited applications, but they can create limitations in a controlled pharmaceutical process.

5.1 Compared with Manual Handling

Manual handling requires operators to lift, push, pull, or tip containers. These actions may expose personnel to ergonomic strain, especially when containers are heavy or must be positioned at an elevated inlet. Manual handling can also produce inconsistent transfer times and increase the possibility of spillage.

The fixed machine performs the principal lifting and tilting actions mechanically. Operators can focus on docking, confirmation, and process control instead of manually manipulating a loaded vessel. This can improve workplace safety and make the transfer sequence more repeatable.

5.2 Compared with Forklift-Based Transfer

Forklifts can move bins between locations, but they require adequate aisle space and trained operators. Forklift traffic may be difficult to coordinate in a clean production room. It can also complicate precise alignment with a process inlet, particularly when the receiving equipment is elevated.

A fixed lifting and tilting machine uses a predetermined transfer zone. It reduces dependence on traffic routes and allows the bin to be positioned through controlled mechanical movement. This can help maintain a more organized production area and reduce the risk associated with vehicle movement near processing equipment.

5.3 Compared with Open Tipping

Open tipping exposes the material and may release dust into the room. It can also increase the risk of foreign matter entry and cross-contamination. An enclosed docking and valve arrangement provides a more suitable alternative when product containment and hygiene are important.

The transfer machine does not eliminate the need for suitable room pressure control, dust extraction, cleaning procedures, or operator protection. However, it supports these measures by reducing the number of open handling steps.

5.4 Compared with Separate Lifting and Conveying Devices

Using separate lifting equipment, a mobile turning device, and a dedicated conveyor may create more interfaces and require more coordination. Each additional interface can become a potential point of product retention, cleaning complexity, or mechanical failure.

The integrated design combines key movements within one machine. This can simplify the process route, reduce equipment congestion, and make operator training more direct. It also gives the equipment supplier greater responsibility for coordinating the lifting, tilting, rotation, and discharge functions as a unified system.

6. Process Benefits for Pharmaceutical Manufacturing

The machine’s design supports several objectives that are central to pharmaceutical manufacturing. These include containment, repeatability, cleaning efficiency, product recovery, operator safety, and flexible integration.

6.1 Reduced Dust Generation

Dust can be generated when powders are poured from one vessel to another or when containers are opened for manual transfer. The enclosed docking arrangement and controlled butterfly-valve discharge can reduce the amount of uncontrolled dust produced during material movement.

Dust reduction benefits both product quality and workplace conditions. It can also support the operation of room ventilation and dust collection systems. The final level of containment depends on the product, connection design, pressure differential, transfer speed, and overall facility configuration.

6.2 Lower Cross-Contamination Risk

Cross-contamination control depends on the complete production system, including room segregation, air handling, cleaning procedures, equipment design, personnel flow, and material flow. The transfer machine contributes by providing smoother contact surfaces, fewer dead corners, a cleanable valve, and an enclosed route between process stages.

These design elements can make product changeover more manageable. They do not replace validated cleaning or risk assessment, but they can make those activities more effective and practical.

6.3 Better Product Recovery

Product loss may occur when material remains in corners, at low points, around valve seats, or inside poorly aligned connections. A conical bin and controlled tilting action encourage material to move toward the discharge point. The absence of unnecessary dead corners further supports recovery and cleaning.

Improved recovery is valuable when active ingredients or high-value formulations are being processed. It can help increase batch yield and reduce the amount of residual material that must be removed during cleaning.

6.4 Consistent Transfer Operations

Repeatable mechanical movements are generally more consistent than manual lifting and tipping. A defined sequence can help operators perform the same operation from batch to batch. Consistency is particularly important when the material has sensitive flow properties or when the receiving machine must be loaded within a specific operating range.

Transfer consistency can also support production planning. If the lifting, positioning, and discharge procedures are standardized, the manufacturing team can better estimate the time required for each batch transfer.

6.5 Improved Operator Ergonomics

Loaded bins can be difficult to manipulate safely. Requiring operators to lift or tip them manually increases the risk of strain and accidental spillage. Mechanical lifting and tilting transfer the physical burden from personnel to the equipment.

Ergonomic improvements should be considered together with access height, control-panel location, cleaning access, and the space required for routine inspection. An effective installation allows operators to complete necessary tasks without awkward postures or excessive reaching.

7. Technical Parameters and Model Selection

The NTF series includes several models intended for different equipment sizes and process capacities. The listed models are NTF-200, NTF-300, NTF-500, NTF-800, and NTF-1000. The numerical model designation should be reviewed together with the actual bin volume, material density, working load, and process requirements before selection.

The following table summarizes the available reference data. The dimensions are installation reference dimensions and should not be treated as a substitute for a project-specific layout drawing.

Item	Unit	NTF-200	NTF-300	NTF-500	NTF-800	NTF-1000
Power	kW	1.3	1.65	2.75	2.75	2.55
L1	mm	2200	2440	2940	3170	3370
L2	mm	1075	1200	1600	1730	1830
W1	mm	700	700	700	700	700
W2	mm	1080	1280	1480	1680	1880
H1	mm	2000	2000	2000	2000	2000
H2	mm	3550	3700	3950	4050	4400
H3	mm	3700	3800	4100	4200	4500

Power requirements vary by model, with listed values ranging from 1.3 kW to 2.75 kW. Installation dimensions also increase generally with model size. This should be taken into account when planning room height, access routes, service clearance, floor loading, and the position of adjacent equipment.

7.1 Questions to Consider During Selection

The correct model should be selected by evaluating more than nominal container size. Important considerations include the maximum gross weight of the filled bin, bulk density of the material, material flowability, discharge behavior, required lifting height, tilting direction, downstream inlet dimensions, and the required transfer frequency.

Plant engineers should also review whether the equipment must serve one receiving machine or several positions. If multiple positions are required, the horizontal rotation range and the surrounding working envelope must be checked. The position of columns, walls, pipes, air ducts, and operator walkways can affect the actual installation arrangement.

Where the machine is connected to a fluid bed granulator or dryer, the docking interface should be confirmed at an early design stage. A successful integration depends on the relationship between the bin outlet, butterfly valve, receiving inlet, sealing arrangement, and process-control sequence.

8. Manufacturing Strengths and Engineering Approach

The value of a transfer machine depends heavily on the manufacturer’s ability to combine mechanical design, hygienic engineering, process knowledge, and project implementation. Changzhou Zhiyang Machinery Equipment Co., Ltd. focuses on powder processing and oral solid dosage equipment and provides standalone machines, modular systems, and complete production lines.

The company was founded in 2010 and is based in Changzhou, China. Its product scope includes laboratory equipment, mixing equipment, granulation equipment, drying equipment, coating equipment, auxiliary processing equipment, and transfer and conveying systems. This broad portfolio is relevant to the NTF machine because transfer equipment is rarely isolated from the rest of the production process.

8.1 Process-Driven Design

A process-driven approach begins with the material and the manufacturing route rather than with a standard machine catalogue alone. Powder characteristics, granule strength, moisture content, bulk density, batch size, required containment, cleaning method, and building conditions all influence the final solution.

For example, a free-flowing dry granule may discharge differently from a cohesive powder. A hygroscopic material may require particular attention to exposure time and environmental control. A high-potency formulation may require enhanced containment. A product intended for frequent changeover may require especially accessible dismantling and cleaning arrangements.

By considering these factors during engineering, the manufacturer can help determine whether a fixed lifting and tilting machine is the most appropriate transfer method and how it should be integrated with upstream and downstream equipment.

8.2 Integration with Related Equipment

Because the company also supplies granulation, drying, milling, mixing, coating, and auxiliary processing equipment, it can evaluate the transfer machine as part of a complete process route. This can reduce the risk of mismatched interfaces between machines supplied by different sources.

Integration may include reviewing inlet and outlet elevations, vessel dimensions, valve arrangements, control signals, cleaning access, production sequence, and operator movement. The goal is to provide a practical engineering implementation plan rather than only a mechanically functional standalone device.

8.3 Manufacturing and Quality Orientation

The company reports that it has strengthened its research and development capabilities, obtained quality system certification, developed patented technologies, and expanded overseas service capabilities. These achievements indicate an emphasis on structured product development and long-term equipment improvement.

For pharmaceutical customers, manufacturing quality should be considered across material selection, welding, machining, surface treatment, assembly, inspection, documentation, testing, and final installation support. Each stage can influence the hygienic performance and reliability of the finished machine.

A dependable manufacturer should be able to discuss the equipment’s materials, surface finish, welding quality, load-bearing components, safety devices, valve construction, control logic, inspection records, and recommended maintenance procedures. Documentation is especially important when the machine will be included in a regulated qualification program.

9. Advanced Manufacturing Considerations

Although the transfer machine has a relatively clear operating principle, its performance depends on the precision and discipline applied during manufacturing. Mechanical movement must remain stable under load, interfaces must align accurately, and product-contact surfaces must be finished consistently.

9.1 Precision Fabrication

The base frame and vertical column must be fabricated with adequate dimensional accuracy to support the specified lifting and rotation functions. Poor alignment can increase wear, create uneven loading, or make docking difficult. Precision fabrication is therefore connected directly to operational reliability.

Fabrication quality is also important for hygienic design. Irregular welds, incomplete finishing, crevices, and inaccessible joints can become retention points. Smoothly finished surfaces and properly treated weld zones support the cleaning strategy and improve the long-term appearance of the equipment.

9.2 Mechanical Assembly

The lifting mechanism, tilting assembly, brake, valve interface, and support points must be assembled in a coordinated manner. Mechanical clearances should be checked so that movement is smooth but controlled. Fasteners, bearings, shafts, and protective components should be installed according to documented procedures.

Assembly inspection should verify that the bin is supported securely throughout the movement cycle. The machine should be checked in the unloaded and loaded conditions appropriate to the project. Movement tests can confirm that the lifting, tilting, braking, and horizontal rotation functions operate as intended.

9.3 Control and Safety Testing

A transfer system should include a clear operating sequence and suitable safeguards. Operators need to know when the bin is correctly docked, when lifting is permitted, when the brake can be released, and when the butterfly valve may be opened.

Safety testing should include the intended interlocks, emergency stop functions, movement limits, valve protection, and prevention of unsafe operating sequences. The exact safety architecture depends on the project specification and applicable standards, but the principle is consistent: the machine should help prevent foreseeable operating errors.

9.4 Factory Testing and Site Acceptance

Before shipment, the manufacturer can conduct dimensional checks, no-load movement tests, functional tests, and inspection of key assemblies. Depending on the customer’s requirements, factory acceptance testing may include simulated docking, lift and tilt sequence verification, control-panel checks, and review of documentation.

After installation, site acceptance testing should confirm that the machine operates correctly with the actual bin and connected process equipment. The final checks may include alignment, load testing, interface sealing, transfer sequence, cleaning access, and operator training.

10. Installation and Production-Line Integration

Installation planning should begin before the machine arrives at the facility. The reference dimensions show that the total height can be substantial, with the H2 dimension ranging from 3550 mm to 4400 mm and the H3 dimension ranging from 3700 mm to 4500 mm across the listed models.

Room height is therefore an important factor. Engineers should consider not only the static height of the machine but also the movement envelope, maintenance access, lifting path, ceiling services, sprinklers, ventilation ducts, lighting, and any structural beams. Adequate clearance should be reserved for inspection and replacement of wear components.

Floor conditions should also be assessed. The base frame must be installed on a suitable foundation capable of supporting the equipment and its maximum operating load. Anchoring and leveling requirements should be defined in the installation documentation.

10.1 Alignment with Fluid Bed Equipment

When the transfer machine is used with a fluid bed granulator or dryer, the inlet position must be coordinated carefully. The bin should be able to reach the required height without interference from adjacent components. The docking interface should remain stable during lifting, tilting, and discharge.

The receiving equipment may need to be lifted synchronously with the conical bin in some configurations. This arrangement can help preserve a sealed connection and accommodate different process elevations. The complete movement sequence should be reviewed through layout drawings and, where necessary, three-dimensional engineering models.

10.2 Alignment with Milling Equipment

Milling units may be positioned below, beside, or in line with the transfer machine. The product path should be as direct as practical, with a minimum number of unnecessary bends and exposed connections. The bin outlet, butterfly valve, mill inlet, and any intermediate chute should be compatible with the material’s flow behavior.

Material may bridge or compact if the outlet geometry is unsuitable. Therefore, the machine should be selected and configured according to the product’s flow properties rather than relying only on nominal equipment dimensions.

10.3 Operator Access

Operators need safe access to the controls, docking points, valve, inspection areas, and cleaning components. The layout should provide sufficient space for routine work without forcing personnel to stand beneath a suspended load or enter an unsafe movement zone.

Clear operating procedures should define how the bin is installed, how movement is initiated, how docking is confirmed, how discharge is started, and how the system is returned to its safe position. Training should cover normal operation, abnormal conditions, cleaning, inspection, and emergency response.

11. Cleaning, Maintenance, and GMP Support

Cleaning and maintenance are central to the lifecycle performance of pharmaceutical transfer equipment. The machine should be designed so that product-contact and high-risk surfaces can be inspected and cleaned without excessive disassembly.

11.1 Cleaning Access

The design without unnecessary dead corners and exposed fasteners helps provide more accessible surfaces. The dismantlable butterfly valve is particularly useful because it can be removed for dedicated cleaning and inspection. Operators should follow the validated cleaning method specified for the product and facility.

Depending on the material and contamination risk, cleaning may include dry vacuuming, manual wiping, wet cleaning, or another approved method. Compatibility between the cleaning agent and the equipment materials should be confirmed. Any seals, gaskets, or polymer components should also be evaluated for chemical and temperature resistance.

11.2 Inspection Points

Regular inspection should cover the lifting mechanism, tilting assembly, brake, rotation points, support structure, valve, docking interface, and safety devices. The inspection schedule should be based on operating frequency, load, environmental conditions, and manufacturer recommendations.

Operators should look for unusual noise, vibration, uneven movement, leakage, damaged seals, loose components, corrosion, or signs of product accumulation. Early detection can prevent minor issues from developing into production interruptions.

11.3 Preventive Maintenance

Preventive maintenance may include lubrication where appropriate, checking fastener security, inspecting moving components, verifying brake performance, testing safety functions, and confirming that the valve operates smoothly. Maintenance activities should be documented in accordance with the site’s quality system.

Any lubrication used near product-contact areas must be selected carefully. The manufacturer and user should define which components require lubrication and how contamination is prevented. Maintenance work should also include a clear procedure for returning the machine to a clean and approved operating condition.

11.4 GMP-Oriented Design

The machine supports pharmaceutical GMP objectives through enclosed material transfer, cleanable surfaces, reduced manual handling, a controlled discharge valve, and the possibility of sealed docking. GMP compliance is not achieved by one machine feature alone. It is the result of coordinated equipment design, facility operation, documentation, training, sanitation, validation, and quality control.

For qualification projects, customers may require design documents, material certificates, drawings, operating instructions, maintenance information, factory test records, and installation or operational qualification support. These requirements should be discussed during the quotation and engineering stages.

12. Applications Beyond Pharmaceutical Production

The same design principles can be useful in chemical and food processing. In chemical applications, enclosed transfer can help reduce dust and protect operators from contact with powdered ingredients. In food processing, hygienic construction and cleanable valves can support ingredient handling and product changeover.

Nutraceutical and dietary supplement manufacturing often uses equipment similar to pharmaceutical solid dosage production. Powders, granules, botanical materials, and premixes may need to be transferred between mixers, granulators, dryers, mills, and packaging preparation areas.

Veterinary products and additives may also benefit from controlled bin handling. However, each application must be assessed individually. Product abrasiveness, corrosiveness, sensitivity to moisture, electrostatic behavior, cleaning chemistry, and required containment can all affect the final equipment specification.

13. Why a Complete Engineering Partner Matters

Purchasing a transfer machine from a supplier with experience in related processing equipment can provide advantages during project development. The transfer unit must fit the production route, and its performance can be affected by the machines placed before and after it.

A complete engineering partner can help evaluate process capacity, vessel sizing, equipment elevation, material flow, cleaning strategy, operator access, and production sequence. This is particularly valuable for customers developing a new production line or upgrading an existing facility.

Changzhou Zhiyang Machinery Equipment Co., Ltd. describes its business as covering standalone machines, modular systems, and complete production lines for pharmaceutical, biopharmaceutical, biotechnology, nutraceutical, veterinary, additives, and related industries. Its process-oriented approach is intended to match equipment solutions with material characteristics, capacity requirements, and site conditions.

The company also emphasizes research and development, patented technologies, quality system certification, customer service, and overseas project support. These capabilities can be relevant when a customer requires more than standard equipment delivery. A successful project may include process consultation, customized engineering, manufacturing, factory testing, installation guidance, commissioning assistance, and after-sales service.

14. Purchasing and Project Evaluation Guide

Before purchasing a fixed lifting and tilting transfer machine, the customer should prepare a clear technical specification. The specification should describe the product, batch size, container volume, maximum gross weight, bulk density, flow properties, moisture sensitivity, cleaning method, containment expectations, and production frequency.

The customer should also provide the dimensions and connection details of the upstream and downstream equipment. This information allows the manufacturer to review the required lifting stroke, tilting range, rotation path, valve size, docking arrangement, and installation space.

14.1 Documentation Requirements

For a regulated pharmaceutical project, the documentation package may include general arrangement drawings, material information, surface-finish details, component lists, operating instructions, maintenance manuals, electrical documents, safety information, testing records, and recommended spare-parts lists.

Customers should determine whether they need design qualification support, factory acceptance testing, installation qualification assistance, operational qualification assistance, or performance verification support. These requirements can influence the project schedule and the manufacturing documentation prepared by the supplier.

14.2 Service and Spare Parts

The expected service life and operating pattern should be discussed during selection. Spare parts may include seals, valve components, bearings, sensors, switches, and other wear items. A recommended spare-parts package can reduce downtime if a replacement is needed.

After-sales service is particularly important when the machine is integrated with several other process units. Troubleshooting may involve mechanical alignment, controls, docking, valve operation, or process flow. A supplier with experience across multiple equipment categories may be better positioned to investigate the complete system.

15. Frequently Asked Questions

Q1: What materials can be handled by the machine?

The machine is intended for solid materials such as pharmaceutical powders, granules, and milled products. It may also be used for chemical, food, nutraceutical, veterinary, and additive materials. Suitability depends on bulk density, flowability, abrasiveness, moisture sensitivity, particle size, and other product characteristics.

Q2: What equipment can be connected to the transfer machine?

Typical connected equipment includes fluid bed granulators, fluid bed dryers, and milling units. The machine can also be engineered for other process interfaces when the required dimensions, load, discharge arrangement, and containment conditions are confirmed.

Q3: How far can the bin be tilted?

The described tilting mechanism can rotate the conical bin by up to 180 degrees. The actual operating position should be determined according to the product, bin geometry, downstream inlet, safety requirements, and process sequence.

Q4: Does the machine support enclosed transfer?

Yes. The bin can be docked with the receiving equipment and discharged through a butterfly valve under enclosed conditions. The overall containment result also depends on the sealing arrangement, room pressure, dust-control system, and operating procedures.

Q5: Can the butterfly valve be removed for cleaning?

Yes. The discharge butterfly valve is designed to be dismantled for cleaning and inspection. The cleaning procedure should be validated or approved according to the product and facility requirements.

Q6: How does the machine help reduce cross-contamination?

It supports cross-contamination control through enclosed transfer, cleanable contact surfaces, reduced dead corners, fewer open handling steps, and a dismantlable discharge valve. These features must be used together with appropriate room design, cleaning validation, personnel procedures, and quality controls.

Q7: Is the equipment suitable for a new production line?

Yes. It can be considered during the design of a new pharmaceutical, nutraceutical, chemical, or food processing line. Early engineering coordination is recommended so that the machine’s height, rotation area, docking points, and utility requirements are incorporated into the facility layout.

Q8: Can the machine be used in an existing facility?

It may be suitable for retrofit projects if the existing room provides adequate floor strength, height, access, clearance, and connection locations. A site survey and review of the existing equipment are recommended before final selection.

Q9: What should determine the model selection?

Model selection should consider the filled-bin weight, container dimensions, material characteristics, required lifting height, downstream inlet elevation, transfer frequency, available installation area, and required working envelope. The listed reference dimensions should be checked against project-specific drawings.

Q10: What manufacturing strengths are important when selecting a supplier?

Customers should review the supplier’s experience with powder processing, hygienic equipment fabrication, process integration, quality documentation, factory testing, installation support, and after-sales service. The ability to supply related granulation, drying, milling, mixing, and conveying equipment can also simplify system coordination.

Q11: Does the machine eliminate the need for operators?

No. The machine reduces manual lifting and tipping, but operators are still required to dock the bin, confirm the correct position, start the approved sequence, monitor discharge, perform cleaning, and respond to abnormal conditions. Automation level can be defined according to the project requirements.

Q12: Can the machine support GMP requirements?

Its enclosed transfer arrangement, cleanable surfaces, valve design, and controlled handling functions can support GMP-oriented production. GMP compliance depends on the complete facility, equipment qualification, operating procedures, cleaning validation, maintenance, training, and quality system.

16. Conclusion

The fixed lifting and tilting transfer machine provides a practical solution for moving powders, granules, and milled materials between pharmaceutical processing stages. By combining vertical lifting, horizontal positioning, bin tilting, and controlled butterfly-valve discharge, it creates a more organized alternative to manual tipping, forklift handling, and open transfer operations.

Its principal advantages include controlled movement, reduced manual handling, enclosed material transfer, improved docking flexibility, cleanable contact surfaces, a dismantlable discharge valve, and compatibility with fluid bed granulators, fluid bed dryers, and milling equipment. The fixed structure also helps establish a repeatable process route in facilities where equipment locations and production sequences are clearly defined.

The value of the equipment is strengthened when it is engineered as part of a complete process solution. A supplier with experience in mixing, granulation, drying, coating, milling, and conveying can review the transfer machine in relation to the entire production line. This process-focused approach can help customers improve consistency, efficiency, reliability, operator safety, and lifecycle cost control.

For pharmaceutical, nutraceutical, chemical, food, and related manufacturers, the appropriate selection should be based on material characteristics, load, bin dimensions, installation conditions, containment requirements, cleaning procedures, and integration with adjacent equipment. When these factors are addressed during design and manufacturing, a fixed lifting and tilting transfer machine can become an important part of a hygienic, efficient, and dependable solid material handling system.

References

1. European Commission. EudraLex, Volume 4: Good Manufacturing Practice Guidelines for Medicinal Products for Human and Veterinary Use.

2. United States Food and Drug Administration. Current Good Manufacturing Practice for Finished Pharmaceuticals.

3. International Society for Pharmaceutical Engineering. Good Practice Guide: Process Equipment and Facility Design Principles.

4. International Organization for Standardization. ISO 9001, Quality Management Systems—Requirements.

5. International Organization for Standardization. ISO 14644, Cleanrooms and Associated Controlled Environments.

6. Pharmaceutical solid dosage manufacturing guidance concerning powder handling, granulation, drying, milling, containment, cleaning, and equipment qualification.

7. Technical product information for the NTF fixed lifting and tilting transfer machine, including operating principle, hygienic design features, model range, and reference installation parameters.

Product: NTF Fixed Lifting and Tilting Transfer Machine
